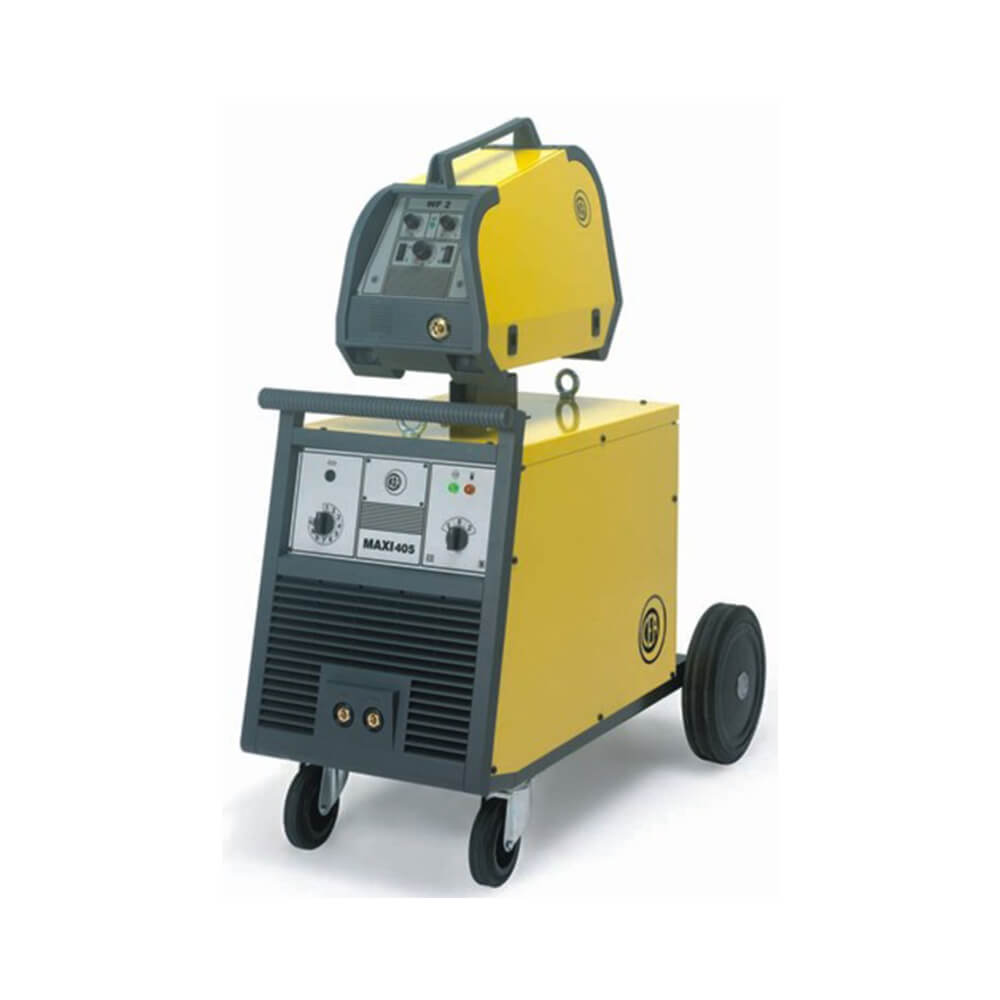

Three-phase semi-automatic welding equipment, with separate wire feeder, recommended for industrial applications, medium and large fabrication work . MAXI power sources, usable with a wide selection of wire feeders and different length interconnecting cables, are the most complete solution for any job and ensure excellent welding performances on any thickness by granting a very stable arc in any welding position.
| Unit of Measurement | MAXI 405 Value | MAXI 505 Value |
|
| Three phase input 50/60 Hz | V | 230/400 | 230/400 |
| Input Power @ I2 Max | kVA | 19 | 24,2 |
| Delayed Fuse (I2 @ 60%) | A | 35/20 | 40/25 |
| Power Factor / cos φ | 0,96 | 0,97 | |
| Efficiency Degree | Ø mm | 0,77 | 0,78 |
| Open circuit voltage | V | 20 – 44 | 19 – 51 |
| Adjustament positions | No. | 20 | 30 |
| Current range | A | 60 – 400 | 60 – 500 |
| Duty cycle at (40°C) | A 100% | 230 | 300 |
| A 60% | 300 | 370 | |
| A 35% | 400 | 500 | |
| Wires | Ø mm | 0,6 – 1,6 | 0,8 – 2,0 |
| Standards | EN 60974-1 • EN 59019 | ||
 |
|||
| Protection Class | IP | 23 S | 23 S |
| Insulation Class | H | H | |
| Dimensions (L x B x H) | mm | 1060 x 600 x 780 | 1060 x 600 x 780 |
| Weight | kg | 99 | 113 |
