High Accuracy Detachable Robotic Torch
Torch easily detaches into a “Torch Body Assy” and “Clamp Body Assy” to drastically reduce downtime for torch replacement.
| Torch Model | ACC-308RX | |
|---|---|---|
| Rated Current (CO2) | A | 350 |
| Rated Current (MAG) | A | 300 |
| Duty Cycle | % | 60 |
| Applicable Wire Size | mm | 0.8 – 1.2 |
| Cooling Method | Air-Cooled | |
| Cable Length | m | 0.8 – 5 |

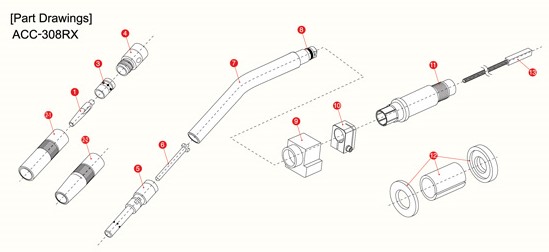

| Reference No. | Part No. | Description | Reference No. | Part No. | Description |
|---|---|---|---|---|---|
| 1 | 002001 | N Tip 0.9 mm | 8 | Y0000FP10 | O Ring F-P 10 |
| 002002 | N Tip 1.0 mm | 5 ~ 8 | 3002033 | ACC-308RX Torch Body (w/Tip Body) | |
| 002003 | N Tip 1.2 mm | 1 ~ 8 | 3002031 | ACC-308RX Torch Body Assy | |
| 2-1 | 001002 | N Nozzle 16 mm | 9 | 3002014 | TK308-RX Block Cover |
| 2-2 | 001003 | N Nozzle 12 mm | 10 | 3002013 | TK308-RX Clamp Block |
| 3 | 003002 | N Orifice S | 11 | 3002012 | TK308-RX Clamp Body |
| 4 | 004002 | N Insulator S | 12 | 016052 | TK308-RX Insulation Collar |
| 5 | 016503 | ACC-308RR Tip Body | 9 ~ 12 | 3002011 | TK308-RX Clamp Body Assy |
| 6 | 016504 | ACC-308RR Guide Tube | 13 | 016505 | ACC-308RR Inner Tube |
| 7+8 | 3002032 | ACC-308RX Torch Body (w/o Tip Body) | 1 ~ 13 | 3002030 | ACC-308RX Torch Assy |
