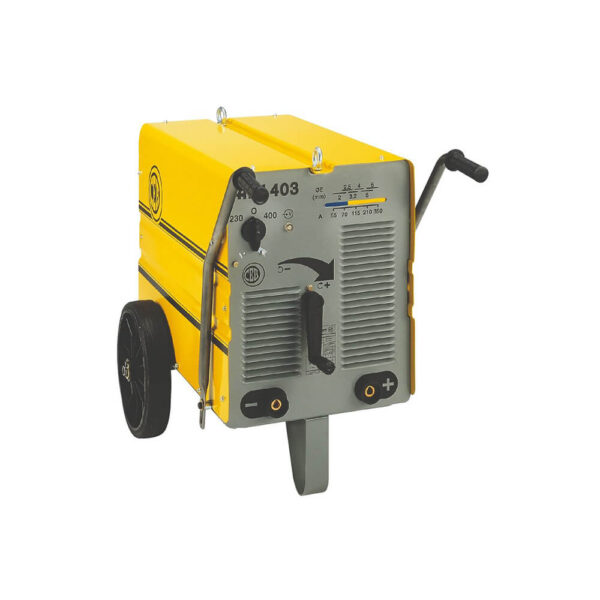

Excellent arc characteristic, product sturdiness and reliability are the main features of ARC models. Suitable for heavy duty application
in maintenance, fabrication works, shipyards and steel construction, these machines ensure a great welding arc stability.
ARC power-sources are available in the following version:
Excellent arc characteristic, product sturdiness and reliability are the main features of ARC models as every model produced by CEA. This power source are especially suitable for heavy duty application in maintenance, fabrication works, shipyards, metal erection and steel construction. In all that field these machines ensure a great welding arc stability and reliability.
ARC power-sources are available in the following version:
| Unit of Measurement | Value | |
| Three phase input 50/60 Hz | V | 230/400 |
| Input Power @ I2 Max | kVA | 32,5 |
| Delayed Fuse (I2 @ 100%) | A | 63/35 |
| Power Factor / cos φ | 0,71 | |
| Open circuit voltage | V | 75 |
| Current range | A | 70 – 450 |
| Duty cycle at (40°C) | A 100% | 230 |
| A 60% | 300 | |
| A 35% | 400 | |
| Electrodes | Ø mm | 2,5 – 8 |
| Standards | EN 60974 – 1 • EN 60974 – 10 | |
| – – – | ||
| Protection Class | 23 S | |
| Insulation Class | H | |
| Dimensions (L x B x H) | mm | 1120 x 570 x 725 |
| Weight | kg | 117 |
