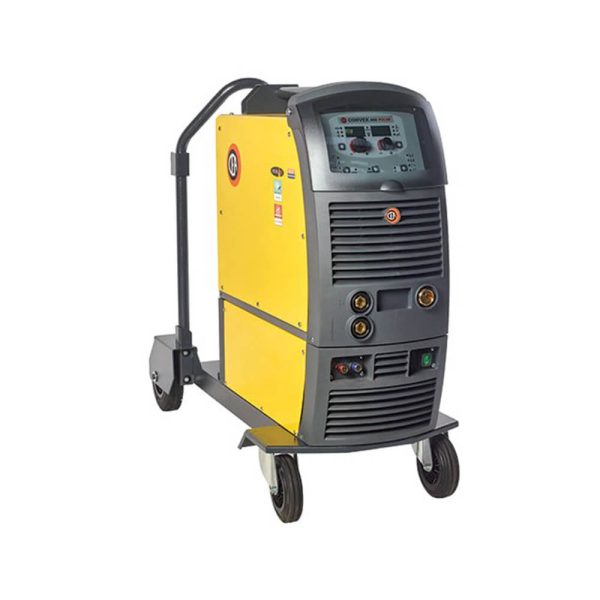

Futuristic design and inverter technology with latest generation digital control are main characteristics of CONVEX PULSE multiprocess compact power sources for welding in MIG-MAG, MMA and TIG with “Lift” mode. Technologically ahead, robust and easy-to-use, they offer excellent quality welding in MIG/MAG, PULSED MIG and DUAL PULSE.
The CONVEX PULSE equipment also allow less experienced operators to easily adjust all welding parameters in an intuitive way. Once the wished program is selected, the welding control automatically determines the best parameters based on the material type, wire diameter and gas being used, fruit of CEA’s know-how acquired in over 65 years’ experience.
These power sources represent the best choice in all industrial fields for all qualified applications requiring high precision and repeatability of the welding results especially in light fabrication work and car body repairs.
CONVEX PULSE models are available in either STANDARD configurations, designed for the most standardized welding applications, or PREMIUM configurations, also providing the innovative Vision.COLD and vision.ULTRASPEED processes, dedicated to anyone looking for a higher performance welding equipment with maximum flexibility on different materials.
SYNERGIC PROGRAMS: Fe – CrNi – AlMg – AlSi
STANDARD FITTED WITH:
SYNERGIC PROGRAMS: Fe – CrNi – AlMg – AlSi – CuSi3 – AlBz8 – FCW (Rutil –Basic – Metal) – Duplex – Super Duplex and other curves from Extra Curve Package (ECP)
vision.ARC is the innovative welding arc control developed by CEA granting a short arc extremely stable and precise in spite of any change of the external conditions. vision.ARC ensures outstanding performances, impossible to be obtained by traditional power sources.
vision.PULSE permits a short arc pulse welding, constantly controlled, by optimizing the results of traditional pulse welding. This enables to reduce the high heat input, typical in pulse welding, with a consequent reduction in distortions, an improvement in the puddle and considerable increase in welding speed too.
Dual Pulse favours a further reduction in the heat transfer to the workpiece by minimizing its deformation and produces premium quality aesthetic beads similar to TIG finishing.
Dual Pulse is extremely useful mostly when welding aluminium and stainless steel.
CONVEX PULSE are systems open to evolving technology: both control firmware and software are designed to be always updatable.
| Unit of Measurement | 325 Value | 405 Value |
|
| Three phase input 50/60 Hz | V (+20% -20%) | 400 | 400 |
| Input Power @ I2 Max | kVA | 17 | 23,7 |
| Delayed Fuse (l eff) | A | 25 | 25 |
| Power Factor / cos φ | 0,66/0,99 | 0,70/0,99 | |
| Efficiency Degree | Ø mm | 0,87 | 0,87 |
| Open circuit voltage | V | 63 | 63 |
| Current range | A | 10-320 | 10-400 |
| Duty cycle at (40°C) | A 100% | 280 | 300 |
| A 60% | 300 | 350 | |
| A % | 320(40%) | 400(40%) | |
| Wires | Ø mm | 0,6 – 1,2 | 0,6 – 1,2 |
| Standards | EN 60974-1 • EN 60974-5 • EN 60974-10 | ||
 |
|||
| Protection Class | IP | 23 S | 23 S |
| Dimensions (L x B x H) | mm | 660 x 290 x 515 | 660 x 290 x 515 |
| Weight | kg | 42 | 43 |
