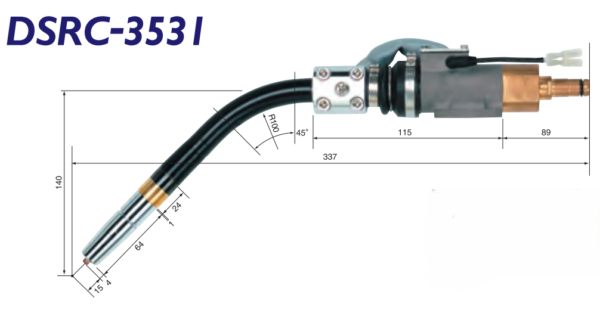

DSRC-3531

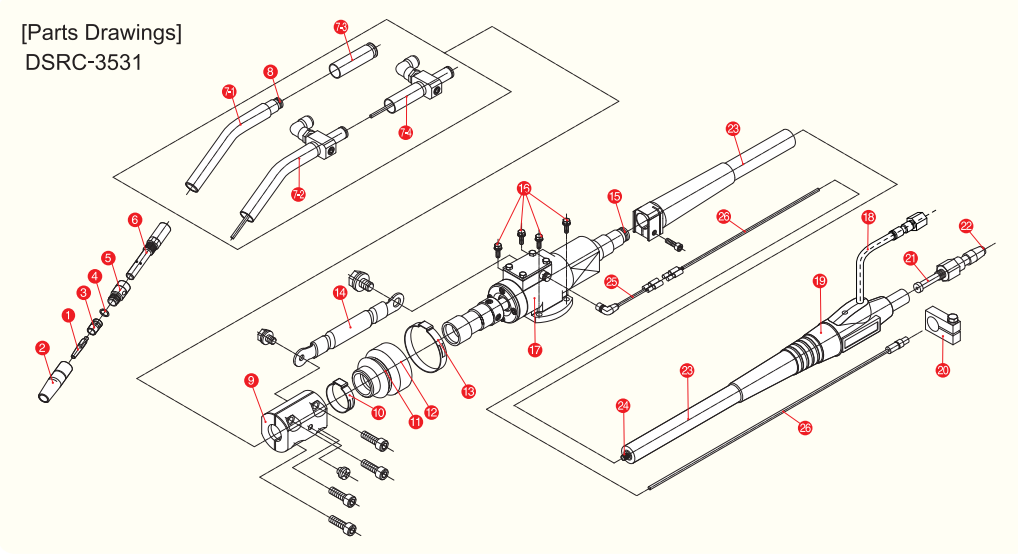

DSRC-3531 Parts list

Reference No.	Part No.	Description
1 ~ 26 *	023581 ~ 023589	DSRC-3531-1.1 ~ DSRC-3531-2.5
1	023008	D Tip 0.9 mm
	023009	D Tip 1.0 mm
	023010	D Tip 1.2 mm
2	023501	DSRC Nozzle
3	023014	D Orifice S
4	023502	DSRC-3531 Spring Washer
5	023015	D Insulator S
6	023503	DSRC-3531 Tip Body
7-1,8	023504	DSRC-3531 Torch Body (w/o Tip Body)
7-2,8	023554	DSRCB-3531 Torch Body (w/o Tip Body)
7-3,8	023552	DSR-3531 Torch Body (w/o Tip Body)
7-4,8	023553	DSRB-3531 Torch Body (w/o Tip Body)
8	023505	DSRC Torch Body O Ring
1 ~ 8	023506	DSRC-3531 Torch Body Assy
9	023508	DSRC Clamp Block
10	3001024	Hose Clamp 286-7R
11	YM0980009	YMST-9800-09 Ring
12	YM0980012	YMST-9800-12 Rubber Boot
13	3001025	Hose Clamp 455-7R
14	3001023	SRC Jumper Cable
15	Y0000FP10	O Ring F-P10
16		Hexagon Bolt x4 (M5 x 25)
9 ~ 17	023500	DSRC Sensor Unit Assy
1 ~ 17	023507	DSRC-3531 Torch Assy
18	033701	N Gas Hose (with Push-in Air Fitting)
19	033108	Robotic Torch Cable Supporter
20	023551	DSRC-3531 P/C Attachment
21	023022	WT-64 Outlet Guide
22	023023	WT-64 Guide Adapter
18 ~ 24 *	023511 ~ 023519	DSRC-3531-1.1 P/C ~ DSRC-3531-2.5 P/S
24 *	023531 ~ 023529	DSRC-3531-1.1 PC ASSY ~ DSRC-3531-2.5 PC ASSY
25	3001039	YSRC Molded Cable
26 *	023571 ~ 023579	DSRC Extension Cable 1.1 m ~ DSRC Shock Sensor Cable 2.5 m
25 ~ 26	023561 ~ 023569	DSRC Shock Sensor Cable 1.1 m ~ DSRC Shock Sebsor Cable 2.5 m
