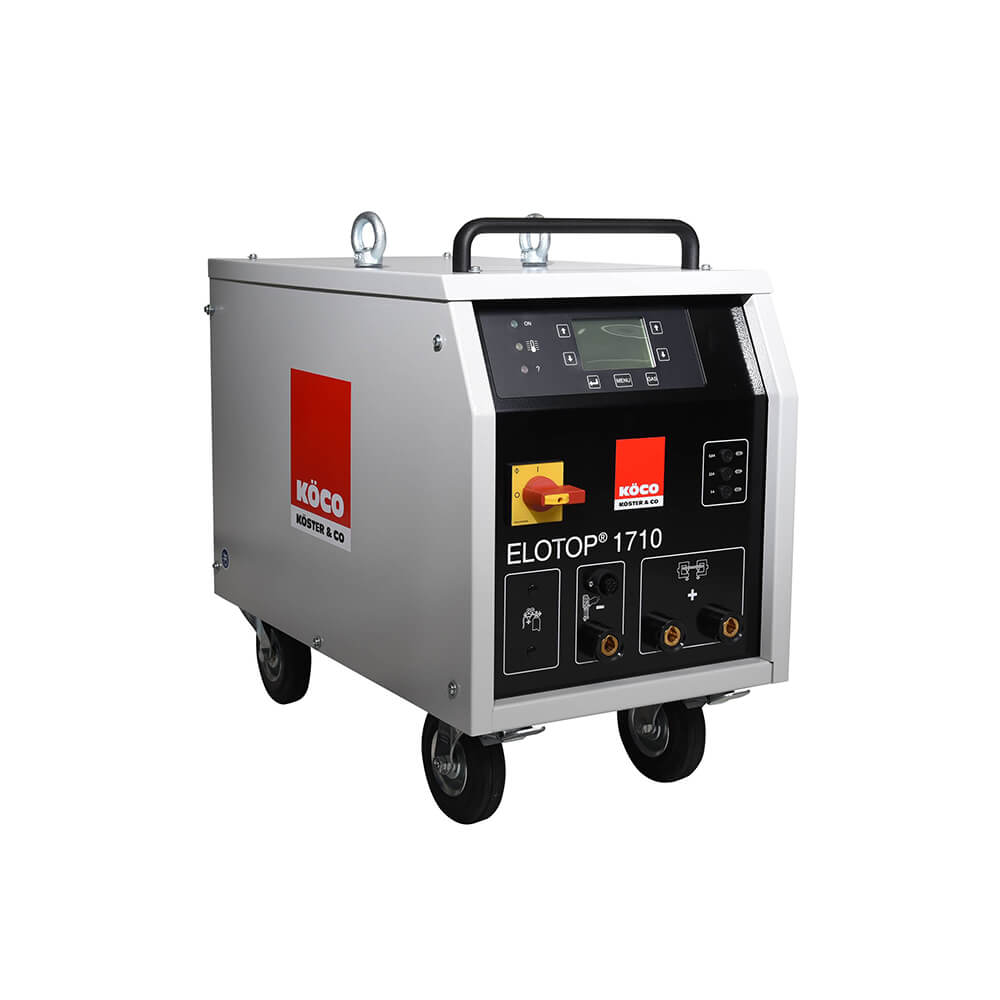

With our robust ELOTOP 1710 every welding process super easy! The long-lasting welding machine is suitable for weldable stud ranges between 3-20 mm allows a maximum current of 1800 A. The time setting range of this lightweight machine is a maximum of 1500 ms and, in addition to safe operation, also offers flexible application possibilities and a robust housing.
| Value | |

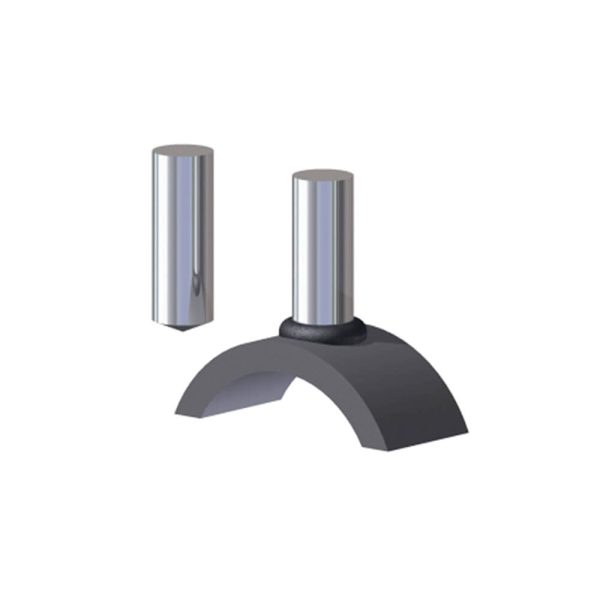

| Stud welding with ceramic ferrule, weldable stud range Ø (mm) | 3–20 |
| Short cycle stud welding, weldable stud range Ø (mm) | 3–12 |
| Stud welding with shielding gas, weldable stud range Ø (mm) | 3–16 |
| Max. current (A) | 1800 |
| Current setting range (A) | 150–1600 |
| Time setting range (ms) | 20–1500 |
| Gas pre-flow time (ms) | 100–2000 |
| Storage of paramaters | 20 |
| Max. stud/min. at … Ø (mm) | 50 /3 2 /20 |
| Mains connection 50/60 Hz, 3-phase (V) | 230/400 |
| Mains plug at 400 V (A) | 63 |
| 4-wire mains cable at 400 V (m/mm²) | 5/10 |
| Mains plug at 400 V (A) | 100/63 |
| Mains power consumption at …% ED (kVA) | 2,25/9/100 121/59/17 |
| Tolerance range mains voltage (%) | – 15 /+ 6 |
| Class of protection | IP 23 |
| Cooling | F |
| Housing dimensions (L x B x H) mm | 700 x 415 x 660 |
| Swivel castors/fixed castors | 2/2 |
| Handle | 1 |
| Lifting eye | 2 |
| Weight (kg) | approx. 160 |
