One station Consists of:
The space-saving configuration cleans nozzles efficiently. The stations are available in two series, “FSeries”, and
“Z Series”, so that they can be selected to suit your spatter conditions.

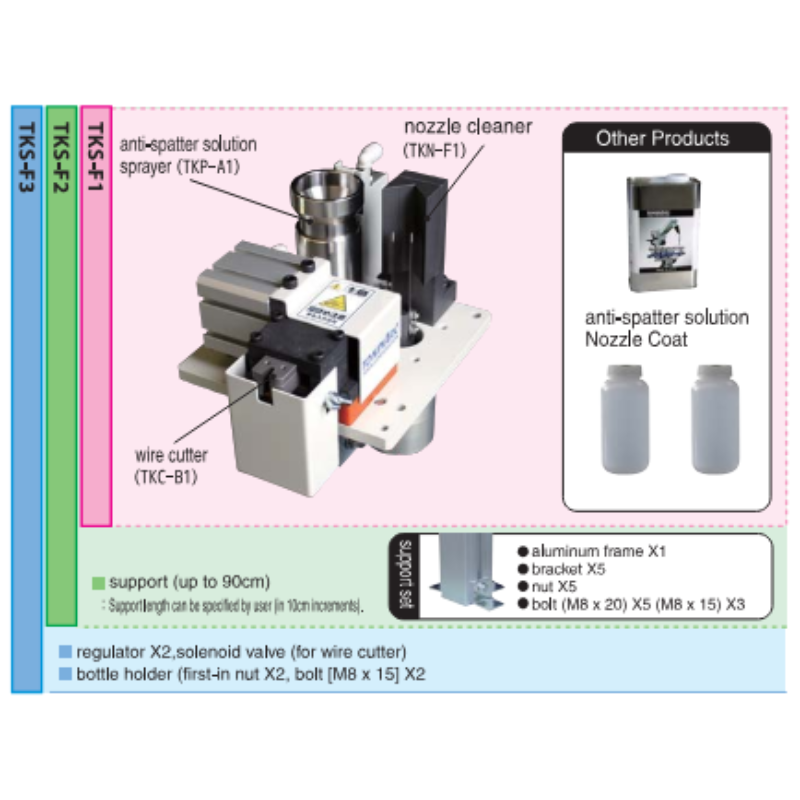

TKS-F Series (0462F*)(*Fits type numbers 1-3)
The spatter that is stuck onto the nozzle orifice can be forcefully removed by using a reamer type nozzle cleaner (TKN-F1). Moreover, it combines a compact wire cutter (TKCB1), allowing it to be installed in the smallest space possible among all the series. Select this type for highamperage region and high use frequency applications where a large amount of spatter is produced.

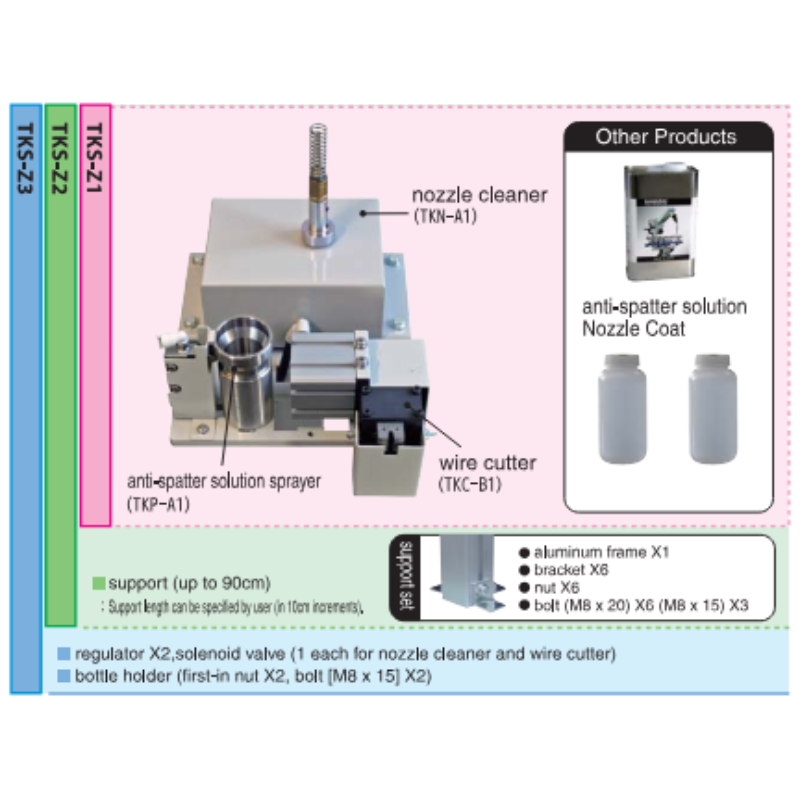

TKS-Z Series (0462Z*)(*Fits type numbers 1-3)
It consists of a nozzle cleaner (TKN-A1), in which the signals from the robot turn the solenoid valve ON/OFF, allowing the pneumatic force to turn the spring, thus removing the spatter; a compact wire cutter (TKC-B1), and an anti-spatter solution sprayer (TKP-A1). It is the standard type nozzle cleaning station that accommodates a wide range of conditions.
