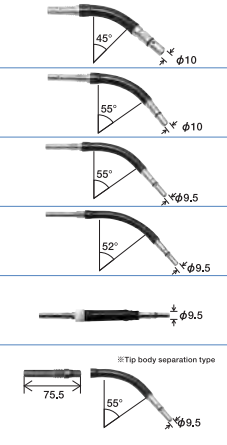

Replacement Parts for P-Type : Other Torch Body

Current	Appearance	Tokin Part No.	P Part No.	P Model No.
180A ~ 200A		022010	TCU20111	YT-18CS YT-20CS YT-18DS YT-20DS YT-18ES YT-20ES
350A Low Duty Cycle		022011	TCU35056	YT-35CE YT-35DE YT-35EE
350A High Duty Cycle		022012	TCU35022	YT-35CS YT-35CH4 YT-35DS YT-35ES
500A		022014	TCX00006	YT-50CS YT-50CSG YT-50DS YT-50DSG3 YT-50CSA3 YT-50DSA3
350A Flexible		022016	TCU35001	YT-35CF YT-35DF

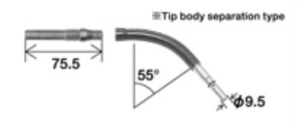

350A Separation Type (High Duty Cycle)		022021 (Torch Body Only) 022031 (Tip Body) 022017 Torch Body (w/Tip Body)	TCU35002 (Torch Body) TEB35116 (Tip Body)	YT-35CS YT-35CH4 YT-35DS YT-35ES

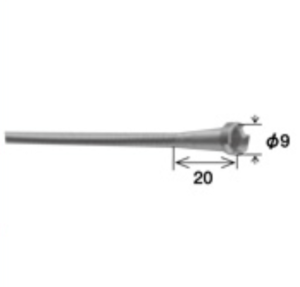

Replacement Parts for P-Type : Inner Tube

Current	Appearance	Tokin Part No.	Length	P Part No.	P Model No.
200A		022061	113	TGT00607 TGT20108	YT-20CS3 YT-20DS3
350A Low Duty Cycle		022063	213	TGT00608 TGT00609 TGT00036 TGT00034	YT-35CE / YT-35DE / YT-35EE / YT-20MD1 / YT-20-MF1 / YT-35CS / YT-35CSG4 / YT-35DS / YT-35ES / YT-35ESG4 / YT-35CH4 / YT-35CSA3 / YT-35DSA3
500A		022064	238	TGT00033	YT-50CS / YT-50DS / YT-50CSG / YT-50DSG3 / YT-50CSA3 / YT-35DSA3
350A Flexible		022065	210	TGT00615 TGT01213	YT-35CF YT-35DF

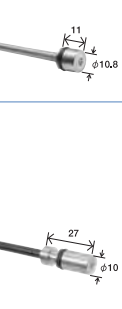

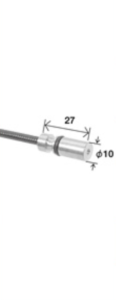

Replacement Parts for P-Type : Liner

Current	Appearance	Tokin Part No.	Wire Size	Torch Cable Length	Liner Length	P Part No.	P Model No.
200A ~ 350A		022101	0.9 ~ 1.2	3m	3200	TDT00262 TDT00066	YT-20CS / YT-20CF / YT-35CE / YT-35DE / YT-20DS / YT-20DF / YT-20MD1 / YT-20MF1 / YT-35CS
200A ~ 350A		022102	0.9 ~ 1.2	4.5m	4700	TDT00264 TDT00067	YT-35CEM / YT-35DEM
350A		022103	0.9 ~ 1.2	3m	3200	TDT00262 TDT00057	YT-35CS / YT-35DS / YT-35CF / YT-35DF / YT-35CSG / YT-35DSG / YT-35CH4 / YT-3oME1 / YT-35CSA3 / YT-35DSA3
350A		022104	0.9 ~ 1.2	4.5m	4700	TDT00265 TDT00058	YT-35CSM / YT-35DSM / YT-35CFM / YT-35DFM / YT-35CHM4
350A		022105	0.9 ~ 1.2	6m	6200	TDT00266 TDT00059	YT-35CSL / YT-35DSL / YT-35CFL / YT-35DFL / YT-35CHL4
500A		022106	1.2 ~ 1.6	3m	3200	TDT00267 TDT00054	YT-50CS / YT-50DS / YT-50CSG3 / YT-50DSG3 / YT-50CSA3 / YT-50DSA3
500A		022107	1.2 ~ 1.6	4.5m	4700	TDT00267 TDT00055	YT-50CEM / YT-50DEM / YT-50CSM / YT-50DSM
500A		022108	1.2 ~ 1.6	6m	6200	TDT00268 TDT00056	YT-50C SL/ YT-50DSl / YT-50CEL / YT-50DEL
