| Current | Appearance | Description (Tokin Part No.) | Tokin Torch Model No. |
|---|---|---|---|
| 350A |  | CS Tip Body A 036001 | CSL-35 / 35F / 35K / 35G / CP-35 / 35F / 35L / 35K / 35G / 45 / 45F / 45L |
| 500A |  | CS Tip Body B 036001 | CSH-50 / 50F / 50L |
 | CS Tip Body D 036001 |
| Appearance | Tokin Part No. | Inner Tube Length | Tokin Torch Model No. |
|---|---|---|---|
 | 038053 | 130 | CSL-18 CSL-20 |
| 038072 | 179 | CSL-20L | |
| 038061 | 210 | CSL-20F | |
| 020210 | 200 | CSL-35 CSL-35K CSL-35G | |
| 020212 | 210 | CSL-35F | |
 | 036014 | 130 | CP-35 |
 | 036011 | 210 | CSH-35K CSH-35 CSH-45 CSH-50 |
| 050310 | 260 | CSH-35L CSH-45L CSH-50L | |
| 036350 | 225 | CSH-35F CSH-45F CSH-50F |
| Current | Appearance | Tokin Part No. | Wire Size | Torch Cable Length | Liner Length | Tokin torch Model No. |
|---|---|---|---|---|---|---|
| 180A |  | 037001 | 0.6 | 3.0m | 3400 | CSL-18 / CSL-18L / CSL-18F |
| 200A | 037002 | 0.8 – 0.9 | 3.0m | 3200 | CSL-20 / CSL-20L / CSL-20F / CSL-35 / CSL-35K / CSL-35L / CSL-35F / CSL-35G / CSH-35 / CSH-35K / CSH-35V / CSH-35L / CSH-35G/ CSH-35F / CSH-35T | |
| 200A ~ 350A | 037003 | 1.0 – 1.2 | 3.0m | 3200 | ||
| 037004 | 4.0m | 4200 | ||||
| 037046 | 1.2 | 4.5m | 4700 | CSL-35 / CSL-35K / CSL-35L / CSL-35F / CSL-35G / CSH-35 / CSH-35K / CSH-35V / CSH-35L / CSH-35G/ CSH-35F / CSH-35T |
||
| 037005 | 5.0m | 5200 | ||||
| 037006 | 6.0m | 6200 | ||||
| 037007 | 1.4 | 3.0m | 3200 | CSH-35 / CSH-35K / CSH-35V / CSH-35L / CSH-35G/ CSH-35F / CSH-35T | ||
| 037008 | 4.0m | 4200 | ||||
| 037047 | 4.5m | 4700 | ||||
| 037009 | 5.0m | 5200 | ||||
| 037050 | 6.0m | 6200 | ||||
| 450A ~ 500A | 036044 | 1.2 – 1.6 | 3.0m | 3200 | CSH-45 / CSH-45K / CSH-45V / CSH-45L / CSH-45F / CSH-50 / CSH-50L / CSH-50F | |
| 036043 | 4.0m | 4200 | ||||
| 036047 | 4.5m | 4700 | ||||
| 036042 | 5.0m | 5200 | ||||
| 036041 | 6.0m | 6200 | ||||

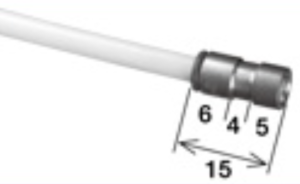

| 350A |  | 0431030 | ID 2.0 | 3.0m | 3200 | CSH-35 |
| 0431040 | 4.0m | 4200 | ||||
| 450A ~ 500A | 0441030 | ID 2.5 | 3.0m | 3200 | CSH-45 CSH-50 | |
| 0441040 | 4.0m | 4200 |
