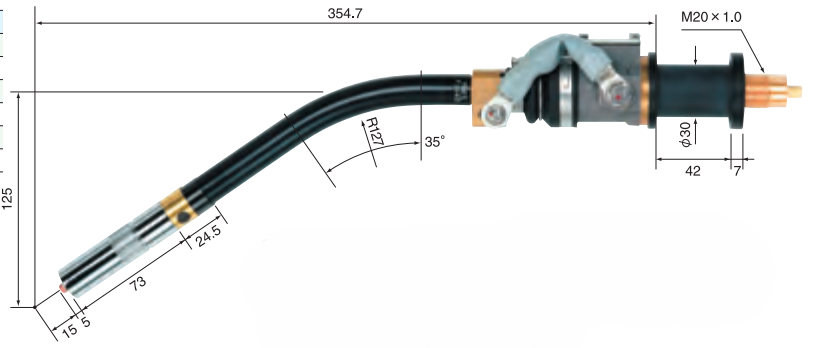

SRCT-308R

Built-in Shock Sensor Robotic Torch

Interference with workpiece was minimized by reducing torch weight and size.
Reduces potential damage to torch and robot.
Reliable repeatability shock sensor.
Without loosing a control point, the torch (TK-308RR) is replaceable.

Main Features

Technical Sheet

Main Features

Technical Sheet

Torch Model		SRCT-308R
Rated Current (CO2)	A	350
Rated Current (MAG)	A	300
Duty Cycle	%	60
Applicable Wire Size	mm	0.8 – 1.2
Cooling Method		Air-Cooled
Cable Length	m	0.8 – 5

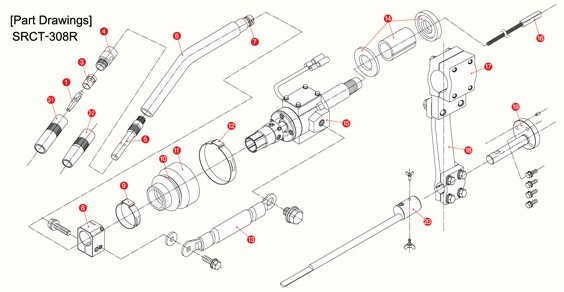

SCRT-308R Parts List

Reference No.	Part No.	Description	Reference No.	Part No.	Description
1	002001	N Tip 0.9 mm	10	YM 098009	YMST-9800-09 Ring
	002002	N Tip 1.0 mm	11	YM0980012	YMST-9800-12 Rubber Boot
	002003	N Tip 1.2 mm	12	3001025	Hose Clamp 455-7R
2-1	001002	N Nozzle 16 mm	13	3001023	SRC Jumper Cable
2-2	001003	N Nozzle 12 mm	14	016052	TK-308RR Insulation Collar
3	003002	N Orifice S	8 ~ 15	3001001	SRC Unit Assy
4	004002	N Insulator S	16	3001004	SCRT-308R Inner Tube
5	016051	TKC-308RR Tip Body	1 ~ 16	3000002	SRCT-308R Torch Assy
6	3001043	YMES-308R Torch Body (w/o Tip Body)	17	YASKAWA Electric	Holder HS9303339-A
7	Y0000FP10	O Ring F-P10	18	YASKAWA Electric	Pedestal HS930339-A
5 ~ 7	3001042	YEMS-308R Torch Body (w/ Tip Body)	19	3001040	SRCT T-Axis Attachment
1 ~ 7	3001002	YEMS-308R Torch Body (w/ Tip Body)	20	3001041	SRCT-308R Torch Gauge
8	YEA000018	YSRC Clamp Block
9	3001024	Hose Clamp 286-7R
