TK-308RX

Torch Body Detachable Robotic Torch

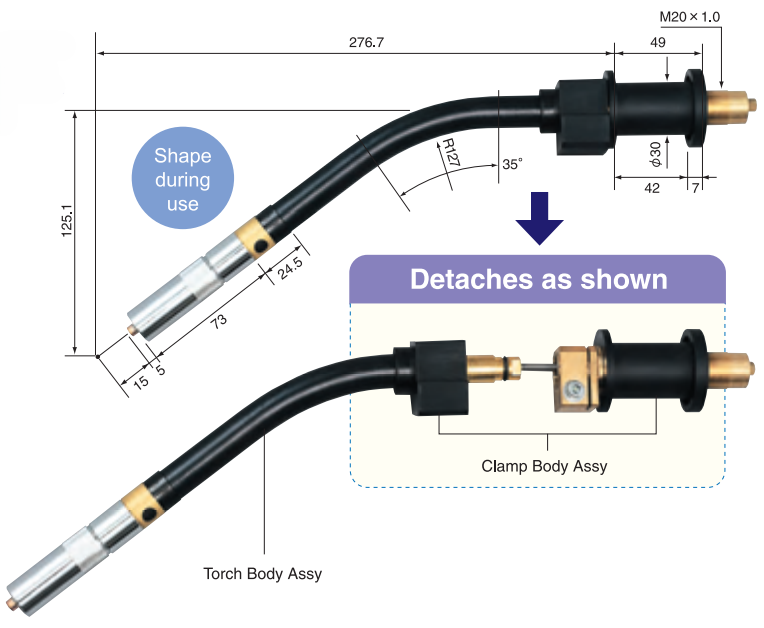

Torch easily detaches into a “Torch Body Assy” and “Clamp Body Assy” to drastically reduce downtime for torch replacement.
Positional accuracy of contact tip after torch replacement is ±0.3mm.

Main Features

Technical Sheet

Main Features

Technical Sheet

Torch Model		TK-308RX
Rated Current (CO2)	A	350
Rated Current (MAG)	A	300
Duty Cycle	%	60
Applicable Wire Size	mm	0.8 – 1.2
Cooling Method		Air-Cooled
Cable Length	m	0.8 – 5

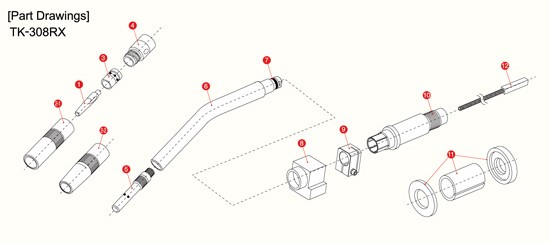

TK-308RX Torch Body Assy Part List

Reference No.	Part No.	Description	Reference No.	Part No.	Description
1	002001	N Tip 0.9 mm	5 ~ 7	3001042	YMES-308R Torch Body (w/ Tip Body)
	002002	N Tip 1.0 mm	1 ~ 7	3001002	SRCT-308R torch Body Assy
	002003	N Tip 1.2 mm	8	3002014	TK-308RX Clamp Block Cover
2-1	001002	N Nozzle 16 mm	9	3002013	TK-308RX Clamp Block
2-2	001003	N Nozzle 12 mm	10	3002012	TK-308RX Clamp Body
3	003002	N Orifice S	11	016052	TK-308RX Insulation Collar
4	004002	N Insulator S	8 ~ 11	3002011	TK-308RX Clamp Body Assy
5	016051	TK-308RR Tip Body	12	016053	TK-308RR Inner Tube
6+7	3001043	YMES-308R Torch Body (w/o Tip Body)	1 ~ 12	3002010	TK-308RX Torch Assy
7	Y0000FP10	O Ring F.P10
