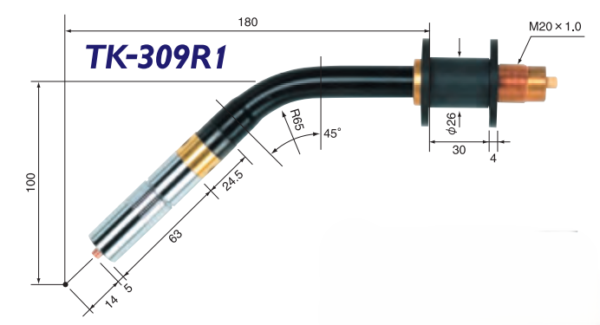

| Torch Model | TK-309R1 | |
|---|---|---|
| Rated Current (CO2) | A | 350 |
| Rated Current (MAG) | A | 300 |
| Duty Cycle | % | 60 |
| Applicable Wire Size | mm | 0.8 – 1.2 |
| Cooling Method | Air-Cooled | |
| Cable Length | m | 0.8 – 5 |
| Reference No. | Part No. | Description |
|---|---|---|
| 1 | 002008 | D Tip 0.9 mm |
| 002009 | D Tip 1.0 mm | |
| 002010 | D Tip 1.2 mm | |
| 2 | 001013 | N Nozzle 16 mm/63L/350 A |
| 3 | 003002 | N Orifice L |
| 4 | 004002 | N Insulator L |
| 5 | 038001 | CS Tip Body A |
| 6 | 036001 | TK-309R1 Torch Body (w/o Tip Body) |
| 5+6 | 016047 | TK-309R1 Torch Body |
| 7 | 016048 | TK-309R1 Insulation Collar |
| 8 | 016053 | TK-308RR Inner Tube |
| 1 ~ 8 | 016049 | TK-309R1 Torch Body Assy |
