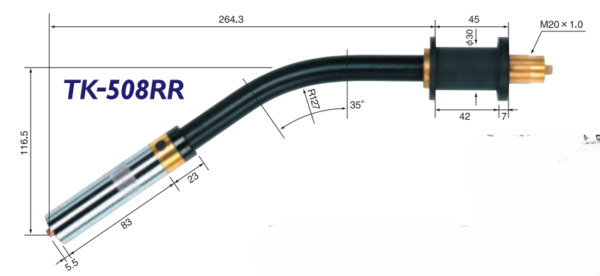

| Torch Model | TK-508RR/RX | |
|---|---|---|
| Rated Current (CO2) | A | 350 |
| Rated Current (MAG) | A | 300 |
| Duty Cycle | % | 60 |
| Applicable Wire Size | mm | 0.8 – 1.2 |
| Cooling Method | Air-Cooled | |
| Cable Length | m | 0.8 – 5 |
| Reference No. | Part No. | Description |
|---|---|---|
| 1 | 002003 | N Tip 1.2 mm |
| 002017 | N Tip 1.4 mm | |
| 002004 | N Tip 1.6 mm | |
| 2 | 001001 | N Nozzle 19 mm/500 A |
| 3 | 003001 | N Orifice L |
| 4 | 004001 | N Insulator L |
| 5 | 016403 | TK-508RR Tip Body |
| 6 | 016404 | TK-508RR Torch Body (w/o Tip Body) |
| 5+6 | 016400 | TK-508RR Torch Body |
| 7 | 016052 | TK-308RR Insulation Collar |
| 8 | 016053 | TK-308RR Inner Tube |
| 1 ~ 8 | 016401 | TK-308RR Torch Body Assy |
