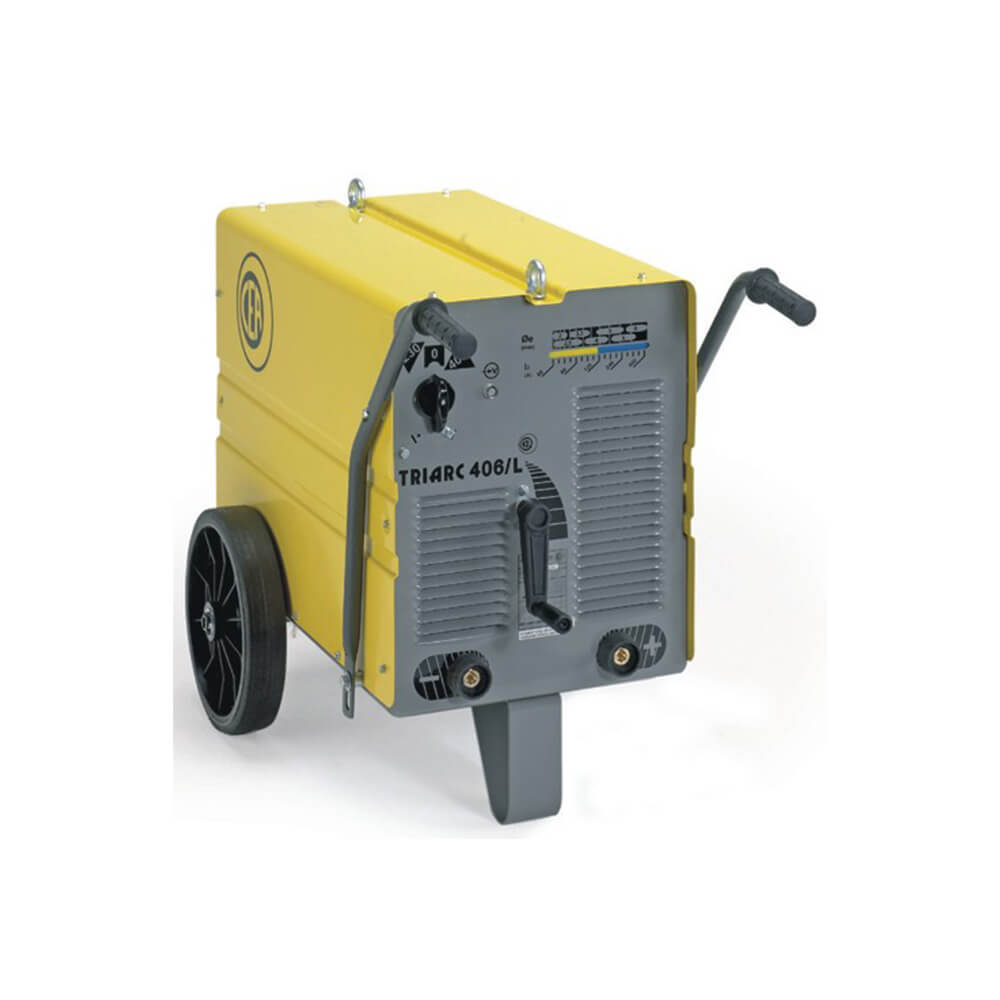

Range of threephase D.C. electrode welding machines, with current adjustment by magnetic shunt. Their sturdiness, reliability and excellent arc stability enable their use in heavy duty industrial applications. TRIARC models, fitted with smoothing inductance, are also suitable for welding cellulosic electrodes.
Excellent arc characteristic, product sturdiness and reliability are the main features of TRIARC models by CEA. Suitable for heavy duty application in maintenance, fabrication works, shipyards and steel construction, these machines ensure a great welding arc stability.
TRIARC’s, fitted with smoothing inductance, grant more stable and soft arc and are also suitable for welding cellulosic electrodes.
| Unit of Measurement | TRIARC 406/L Value | TRIARC 506/L Value |
|
| Three phase input 50/60 Hz | V | 230/400 | 230/400 |
| Input Power @ I2 Max | kVA | 29,8 | 38,2 |
| Delayed Fuse (I2 @ 100%) | A | 50/32 | 63/40 |
| Power Factor / cos φ | 0,75 | 0,79 | |
| Open circuit voltage | V | 75 | 75 |
| Current range | A | 60 – 400 | 80 – 500 |
| Duty cycle at (40°C) | A 100% | 230 | 290 |
| A 60% | 300 | 380 | |
| A 35% | 400 | 500 | |
| Electrodes | Ø mm | 2 – 8 | 2,5 – 8 |
| Standards | EN 60974 – 1 • EN 60974 – 10 | EN 60974-1 • EN 60974-10 | |
| – – – | – – – | ||
| Protection Class | 23 S | 23 S | |
| Insulation Class | H | H | |
| Dimensions (L x B x H) | mm | 1120 x 570 x 725 | 1120 x 570 x 725 |
| Weight | kg | 122 | 139 |
