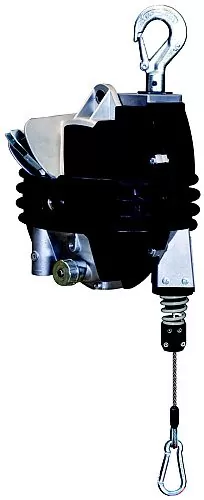

ZERO GRAVITY BALANCERS 9361G/9369G – CAPACITY 10/75 KG

Rubbered protection.
Ribbed and sealed monobloc construction in aluminium alloy.
Stainless steel rope.
Adjustable capacity by means of a worm screw.
Auxiliary safety suspension.
Safety device against load dropping due to the spring breakage (>3kg).
Centrifugal safety device.
Upper rotary suspension with safety hook.
Locking device to block the load at any height.
Adjustable stroke limiting device.
Taper drum rotating on ball bearings.
Cable guide in antifriction material.
Rotary upper hook with ball bearing.
Inert spring drum assembly.
Polyamides thimble.

Types

Clear

Main Features

Technical Sheet

Main Features

Technical Sheet

ITEM		9361G	9362G	9363G	9364G	9365G	9366G	9367G	9368G	9369G
Capacity	kg	10-15	15-20	20-25	25-30	30-35	35-45	45-55	55-65	65-75
Stroke	mm	2000	2000	2000	2000	2000	2000	2000	2000	2000
Net weight	kg	10.30	10.60	10.90	11.30	11.70	12.10	12.40	13.40	14.30
Gross weight	kg	11.8	12.1	12.4	13.3	13.3	14.1	14.1	15.0	15.8
Package dimensions	mm	590 265 260	590 265 260	590 265 260	590 265 260	590 265 260	590 265 260	590 265 260	590 265 260	590 265 260

Specifications subject to change without notice.
