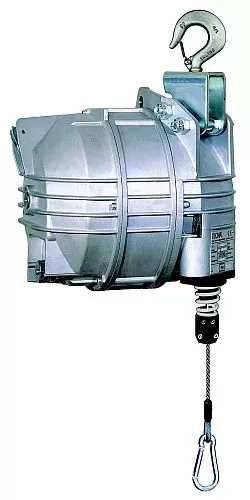

ZERO GRAVITY BALANCERS 9422/9426 – CAPACITY 100/180 KG

Ribbed and sealed monobloc construction in aluminium alloy.
Stainless steel rope.
Adjustable capacity by means of a worm screw.
Auxiliary safety suspension.
Safety device against load dropping due to the spring breakage (>3kg).
Centrifugal safety device.
Upper rotary suspension with safety hook.
Locking device to block the load at any height.
Adjustable stroke limiting device.
Taper drum rotating on ball bearings.
Cable guide in antifriction material.
Rotary upper hook with ball bearing.
Lining up upper hook.
Visible cable for inspection.
Inert spring drum assembly.

Types

Clear

Main Features

Technical Sheet

Main Features

Technical Sheet

ITEM		9422	9423	9424	9425	9426
Capacity	kg	100-120	120-140	130-150	140-160	160-180
Stroke	mm	2500	2500	2500	2500	2500
Net weight	kg	36.61	38.51	38.83	40.90	43.20
Gross weight	kg	40.0	41.9	42.2	44.3	46.6
Package dimensions	mm	670 300 360	670 300 360	670 300 360	670 300 360	670 300 360

Specifications subject to change without notice.
