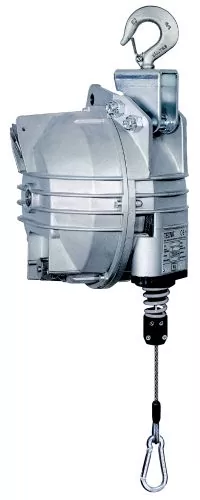

ZERO GRAVITY BALANCERS 9434/9444 – CAPACITY 35/100 KG

Ribbed and sealed monobloc construction in aluminium alloy.
Stainless steel rope.
Adjustable capacity by means of a worm screw.
Auxiliary safety suspension.
Safety device against load dropping due to the spring breakage (>3kg).
Centrifugal safety device.
Upper rotary suspension with safety hook.
Locking device to block the load at any height.
Adjustable stroke limiting device.
Taper drum rotating on ball bearings.
Cable guide in antifriction material.
Rotary upper hook with ball bearing.
Lining up upper hook.
Visible cable for inspection.
Inert spring drum assembly.

Types

Clear

Main Features

Technical Sheet

Main Features

Technical Sheet

ITEM		9434	9435	9436	9441	9442	9443	9444
Capacity	kg	35-45	40-50	50-60	60-70	70-80	80-90	80-100
Stroke	mm	3000	3000	3000	3000	3000	3000	3000
Net weight	kg	24.46	23.64	24.69	25.56	26.75	27.90	28.46
Gross weight	kg	27.5	26.6	27.6	28.5	29.7	30.8	31.4
Package dimensions	mm	670 295 286	670 295 286	670 295 286	670 295 286	670 295 286	670 295 286	670 295 286

Specifications subject to change without notice.
