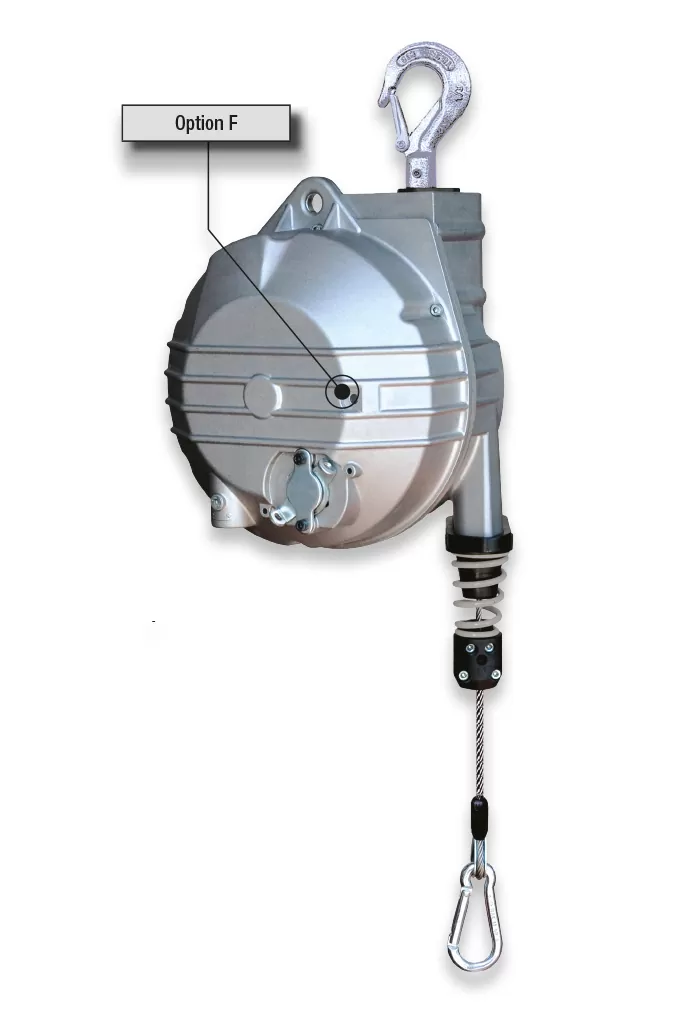

ZERO GRAVITY ESD BALANCERS 9520ES/9525ES – CAPACITY 12/70 KG

Certification for ESD-PROTECTED AREAS (EPA)
Anti-electrostatic materials
Grounded
Ribbed and sealed monobloc construction in aluminium alloy.
Stainless steel rope.
Adjustable capacity by means of a worm screw.
Safety suspension.
Safety device against load dropping due to the spring breakage (>3kg).
Centrifugal safety device.
Upper rotary suspension with safety hook.
Locking device to block the load at any height.
Adjustable stroke limiting device.
Taper drum rotating on ball bearings.
Cable guide in antifriction material.
Rotary upper hook with ball bearing.
Lining up upper hook.
Inert spring drum assembly.
Operating temperature between + 5°C to + 60°C.

Types

Clear

Main Features

Technical Sheet

Main Features

Technical Sheet

ITEM		9520ES	9521ES	9522ES	9523ES	9524ES	9525ES
Capacity	kg	12-20	20-30	30-40	40-50	50-60	60-70
Stroke	mm	2700	2700	2700	2700	2700	2700
Net weight	kg	12.80	12.60	15.80	15.40	16.60	15.70
Gross weight	kg	14.60	14.40	17.60	17.20	18.40	17.50
Package dimensions	mm	590 265 260	590 265 260	590 265 260	590 265 260	590 265 260	590 265 260

Specifications subject to change without notice.
